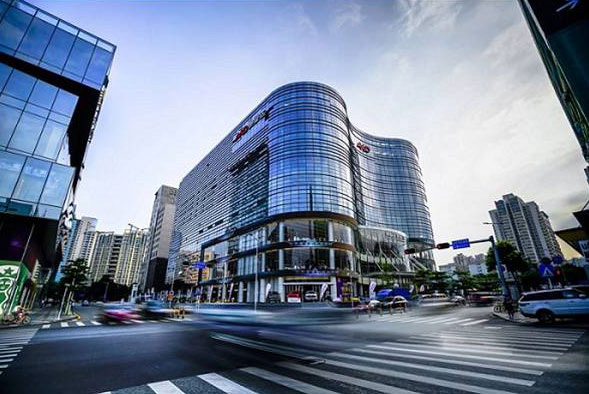

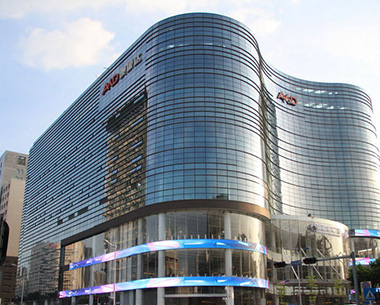

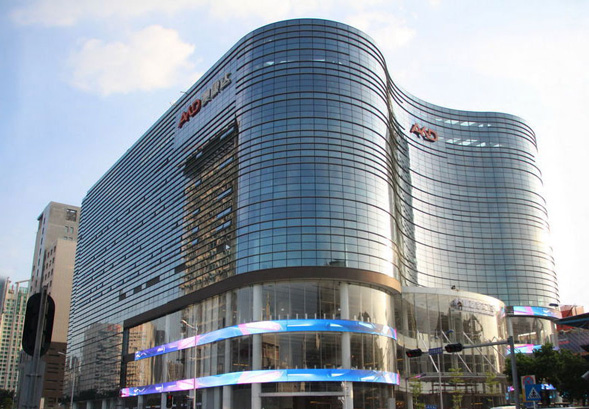

Shenzhen AKD Mall

"Inspiring Wave* As Design Intent

Shenzhen AKD mall is the first project development in China applied curved tempering methodology on both convex and concave shape of Lo旷E DGU to form a wave shape facade, maintaining the Low^e coating on the same side. By applying SHENB0, s latest self R&D special curved glass bending technique, Low-E glass can be fabricated stably and the coating will not be damaged either the coating is located on the convex nor concave side. According to the traditional glass bending method which are widely used in the construction and glazing industry, coatings can only be located on concave side.

APPEARANCE

The color and light reflectance of the front and back side of the Low-E coatings are observably different, all coatings should be facing the same direction to achieve a consistent color of the facade.

PERFORMANCE

Refers to the limitation of traditional bending technique, the coating will be shifted to another concave side to avoid the fabrication, difficulties; while the coating side shifted, it can cause inefficient energy saving results; shading coefficient (SC) rises around 30-60%.

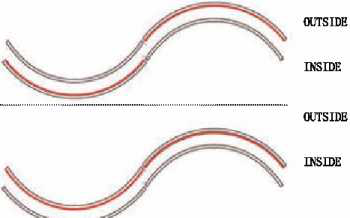

Traditional bending technique According to the traditional glass bending method which are widely used in this industry, coatings can only be located on concave side, otherwise the coatings  will be damaged.

LOW -E Coating

SBG special bending technique

By applying SHENBO edge-cutting ending technique, Loir-E glass can be fabricated stably and the coating will not be damaged either the coating is located on the convex nor concave side.

Developer: AKD

Architectural Firm: AECO

Products:"S shape" CURVED Laminated DGU

Quantity: 18,000 Sqm

Completion Year: 2014

Glazing (1):

Outer: 6mm Low-E

Airspace:12mm

Inner:6mm Clear

Thickness: 24mm

Glazing (2):

Outer (1): 6mm Low-Iron

Interlayer: 1. 52PVB

Outer ⑵：6mm Low-E

Airspace: 12mm

Inner: 6mm Low-Iron

Thickness: 31.52mm

Processing:

Special Curved/ Tempered/ Heat Soak
