Unitized Curtain Wall

Aluminium Extrusion: 6063-T5/6063-T6//6061-T6

Frame Width: 800mm-1500mm

Frame Height: 3000mm-4500mm

Aluminium Extrusion Thickness: 2.0mm&3.0mm

Urface Finish: Power coated

Color: Dark Gray(Color can be customized)

Sealant: GE sealant (can be customized)

PRODUCTS DESCRIPTION

Structure sealant: GE Structure sealant (can be customized)


Gasket: EPDM or Slicone gasket produced by Rongji Plastic Products Co., Ltd., the largest domestic-foreign joint venture in China.


Glass: Double glazing insluating glass 6HS+12Ar+8FT with double glazing IGU laminated glass  6HS+12Ar+5HS+1.52PVB+5HS  (using high-quality float glass rawl glass sheet, glass color and processing method can be customized).

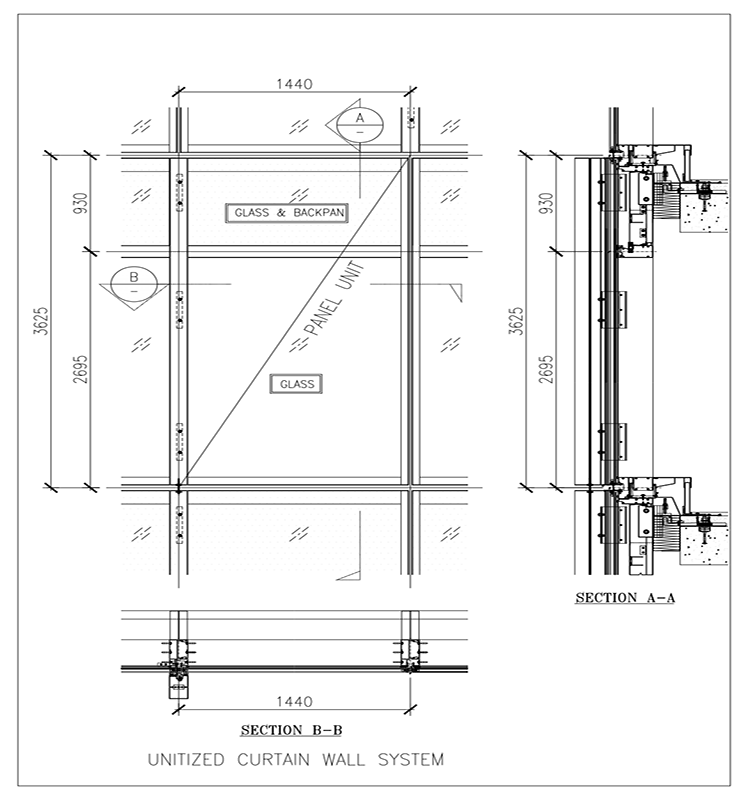

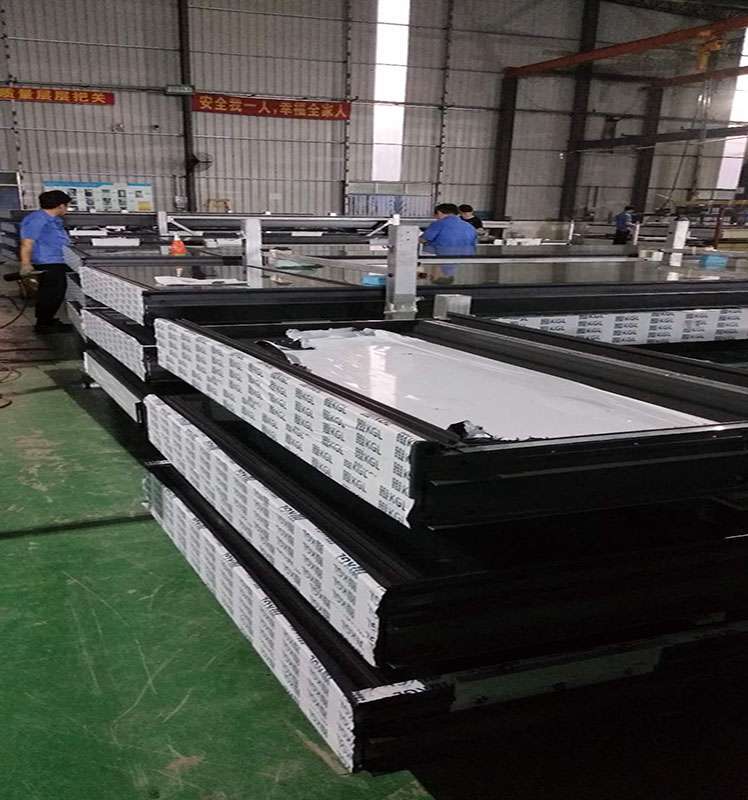

Aluminium extrusion structure: The aluminium extrusion frame is a unitized curtain wall, each panel is an independent unit block and can be designed as unit panels with different widths and heights according to different positions. The unit panel is processed and assembled by the factory, and then sent to the construction site to complete the installation through the docking of the male and female mullion. The unit panel is easy to be hoisted on the construction site, the installation speed is faster, the sealing and waterproof performance is better and the wind and shock resistance is stronger.

PRODUCT DETAILS

Unitized Curtain Wall
